High Current Battery On/Off Switches

Single On/Off

With the preferred system, you don't need the 1-2-BOTH switch. In that system, all you need is an emergency parallel switch. These switches can be used for that purpose, or as disconnect switches at the batteries to permit working on the system without removing cables. The switches are also useful as starter disconnect switches. These switches are operated with keys for additional security.

Application Information

The APC-11321 is rated at 500 Amps intermittently and 150 Amps continuous. This switch will not accept 4/0 cable lugs

The APC-11322 is rated for 2000 Amps intermittently and 500 Amps continuously.

The APC-11321 is 2.2 inches, (56mm), in diameter and measures 4.2 inches, (107 mm), from front to back with the key installed. The corresponding dimensions for the APC-11322 are 4.7 inches, (119.5 mm), diameter and 5.4 inches, (137 mm), depth.

Battery Switch APC-11321 PRICE: $25.97
Battery Switch APC-11322 PRICE: $125.97


Battery Selector Switch

This high current switch is designed for switching between one of two banks of batteries, or the connection of both banks in parallel. The off position also acts as a battery disconnect.

The switch surface mounts with a slot for wires to enter from the bottom. Wires connect to 5/16" brass terminals. Some customers have been able to manage 4/0 cable lugs on this switch, but I think it's a miracle that they could do it, so... I don't recommend it. Capacity is 250 Amps continuous or 350 Amps intermittent. For use on 12 or 24 volt systems UL Listed for Marine use.

Battery Switch AEE-538267 $45.97

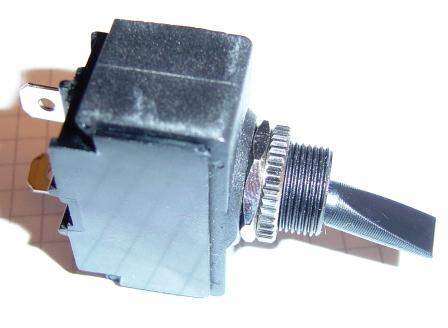

Small DC Rated Toggle Switch

Our USA Made, Marine Grade TOGGLE SWITCHES, fit panels up to 1/4 inches thick when not using the back-up nut provided.

Fits panels up to 3/16 inches thick when using the back-up nut.

Requires a 1/2 inch mounting hole.

 Single Pole, Single Throw, Single Positions On/Off.
Applications include:  DC Lights, Fountain Pumps, Accessories.

12 Volt DC, 5 amp Lamp Load, 15 Amp Ind Load.

Toggle Switch SIS-50111 PRICE: $12.97
