OutBack DC Disconnect PSDC

REAL PEOPLE - WWW.THESOLARBIZ.COM - 888-826-0939

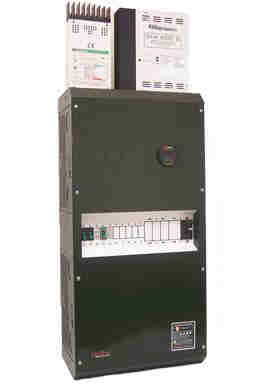

OutBack Power Systems has developed a superior solution for housing all of the DC components of a renewable energy power conversion system. The PSDC saves time, money and space by combining the disconnects, overcurrent protection devices, grounding and control components into one easy to install enclosure. The PSDC is easily modified and expanded as your system grows or changes. This is the best solution we've seen to date, it's really first class!

Standard Features and Components

ETL listed indoor type powder coated steel enclosure with plenty of conduit knockouts.

Mounting space for up to four large 1.5 wide 175 or 250 amp or six medium 1.0 wide 60 to 100 amp breakers sizes can be mixed.

Ten spaces for small 0.75 wide 15, 30 or 60 amp breakers and OBDC-GFP/2 (uses 3 spaces) 500 amp 50 mV current shunt standard.

Battery negative/ground bus bar standard.

Battery positive bus bar for DC loads and PV arrays included standard.

Designed to mount directly to the DC end of   1 or 2 Trace DR or SW series inverters without needing additional conduit boxes or fittings.

Easily connected to other inverter models and enclosures via conduit or raceway. Knockouts on top for two RVPP Solar Boost or three C-series controllers.

Available with or without the circuit breakers and other options pre-installed. For negative or positive ground systems.


Prices subject to change without notice - call for specials

PSDC-250      Power System DC disconnect with one 250 amp breaker - includes one 500 amp / 50 mV meter shunt, one combined ground / negative terminal bus bar and one isolated positive terminal bus bar.       Discontinued, Click here for alterative items

PSDC-175      Power System DC disconnect with one 175 amp breaker - includes one 500 amp / 50 mV meter shunt, one combined ground / negative terminal bus bar and one isolated positive terminal bus bar.       Discontinued, Click here for alterative items



PSDC Options                                                                         All options can be field installed and include complete instructions and all necessary mounting hardware in kit form.

PSMP          Mounting Plate pre-drilled, two-part UPS shippable system        mounting plate for 1 or 2 SW or DR inverter/chargers, or one Vanner RE series inverter/charger with PSDC and PSAC - call  The Solar Biz for compatibility with other inverters. Combined Plate Size:  36 high 50 wide x 1 deep Shipping Size:  25.5 x 3 x 38.25 Shipping Weight:  46 lbs.     Discontinued, Click here for alterative items

VREA           Vanner RE adapter plates  - adapts one side of a PSDC or PSAC to match the Vanner RE inverter/charge sides, contains two adapter plates - includes knockout bushings to protect the wiring   Price: $39.00

PSA              PS series adapter plate  - adapts the side opening of a PSAC or PSDC to match one PS series inverter/charger, adapter plates are required for both a PSDC and PSAC contains only one adapter plate    Discontinued, Click here for alterative items

CCB              Charge Controller Bracket - allows three C-series controllers to be mounted on either side of the PSDC enclosure with matching knockouts (up to three C-series or two RVPP Solar Boost can be top mounted without the CCB)    Discontinued, Click here for alterative items

DC Overcurrent Protection
The PSDC holds a maximum of four large 1.5 breakers, six medium 1 breakers or ten of the small breakers.

OBDC-250             DC breaker  250 amp 125 VDC  with 3/8 inch stud terminals - uses one large 1.5 wide breaker space   Discontinued, Click here for alterative items

OBDC-175             DC breaker  175 amp 125 VDC  with 3/8 inch stud terminals - uses one large 1.5 wide breaker space   Discontinued, Click here for alterative items

OBDC-100             DC breaker  100 amp 125 VDC  with 1/4 inch stud terminals - uses one medium 1 wide breaker space  Price: $39.00

OBDC-60               DC breaker  60 amp 125 VDC  with 1/4 inch stud terminals - uses one small wide breaker space      Price: $29.00

OBDC-30               DC breaker  30 amp 125 VDC with 1/4 inch stud terminals - uses one small wide breaker space       Price: $25.00

OBDC-15               DC breaker  15 amp 125 VDC with 1/4 inch stud terminals - uses one small wide breaker space       Price: $25.00

DC Ground Fault Protection
Required  for PV arrays mounted on dwellings roofs can be used with PSDC and PSR  - uses 3 small spaces.

OBDC-GFP/2    DC Ground Fault Protection system for one or two PV arrays protects wiring and system components Dual 60 amp PV circuits 125 VDC max Voc  - uses three small size breaker spaces   - inch stud terminals. Includes the OBDC-GFP/2 unit, a ground bus bar, neutral and ground connection wiring and mounting hardware. Multiple DC-GFP/2 can be used for large systems up to three can be installed in a single PSDC enclosure   Price: $129.00

Accessories
For use with PSDC and PSAC enclosures for more wire terminations or isolating multiple positive / negative circuits.
TBB      Terminal Bus Bar with plastic insulators and mounting screws.  Can be used in the negative or positive circuits. Provides three #1/0 to 14 AWG and eight #6 to 14 AWG screw type compression terminals. (no ring lugs required) Price: $19.00

GBB      Ground Bus Bar with mounting screws. Provides three #1/0 to 14 AWG and eight #6 to 14 AWG terminals.                                                   Price:$15.00
