OutBack PSPV Combiner Box


OutBack Power Systems now offers a PV array combiner which can be used with a wide variety of PV system designs and module configurations.   Can be configured with DC breakers for low voltage systems (under 125 VDC) or touch safe type fuse holders for high voltage systems (up to 600 VDC). The PSPV is designed to provide NEC code compliant overcurrent protection and interconnection of multiple PV panels or sub arrays into one or more PV arrays for connection to charge controllers or inverter systems. The PSPV is easily field configured to match your system design and ampacity requirements - It is shipped without the breakers or fuse holders installed – order the quantity, type and amperage needed below.



Standard Features and Components

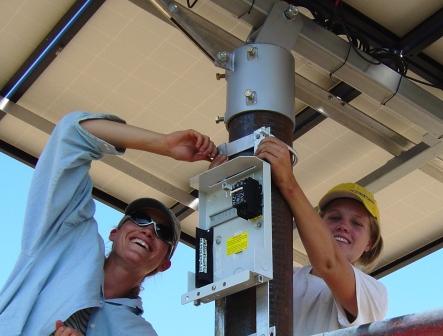

           Outdoor, rainproof powder coated aluminum enclosure – can be installed on vertical or sloped surfaces or pole mounted

·          Snap in DIN rail mounting spaces for up to twelve 125 VDC rated OutBack PV breakers. PV Breakers are hydraulic-magnetic type and are not affected by high ambient temperatures. 10 year warranty on the PV breakers.  For 12, 24, 48 and 60 VDC systems with PV array open circuit voltages up to 125 VDC.  Load break rated.

·          Also available with touch safe type midget fuse holders for high voltage systems up to 600 VDC

·          Dual positive breaker combiner bus bars – can be installed to provide one or two PV output circuits

·          PV negative terminal bus bar with mounting holes for an additional TBB

·          #1/0 AWG set-screw compression type box lug terminals for output wiring – accepts bare cable

·          Four Ύ and 1 inch conduit knockouts – one on the bottom, back and each side – enough space provided on bottom and back to allow up to a 2 inch conduit punch for larger cabling

·          Eight ½ inch knockouts on bottom for PV module or sub array input conduits or strain relief's

·          #1/0 AWG ground lug - can be mounted either on the inside or outside surface

·          For negative or positive ground PV systems

·          Space allowed for the addition of current sensors and lightning protection components


Optional Components (click here for current components)

SIS-50501 - Lay-In Ground Lug 4-14 with Stainless Steel Screw. For connecting module frame ground wire and combiner box to array ground stake. Mounts on outside of Combiner Box.

OBP-09000 - Ground Bus Bar - provides additional ground terminations - three #1/0 and eight #6 max

OBPV-6, OBPV-10  OBPV-15  - UL listed DC breakers - 125 VDC max open circuit with   elevator type compression terminals for #2-14 AWG bare wire  - 6, 10, 15 amp models available

OBP-06200 - OB/FH -Touch safe type fuse holder 600 VDC fuses – accepts #8-14 AWG wire

OB/F6,  OB/F10,  OB/F15  - 600 VDC KLKD fuses for the OB/FH fuse holder

OBP-09110 TBB  - Insulated terminal bus bar for adding a second isolated negative circuit  (required when using with two Blue Sky Solar Boost MPPT controllers)

Physical Dimensions

·       PSPV enclosure:  9.2” wide x 3.5” deep x 13.1” tall  (23.1cm x 8.7cm x 33.2cm)

·       Shipping size:  10” x 4” x 14”     Shipping Weight:  6 pounds  (2.7 kG) + options

PV Array Combiner Components

Part Number Description PRICE
OBP-06000 Power System PV Combiner Box Click here for price
OBP-09009 FLEXware Combiner Bus Click here for price
OBP-06104 6 amp 125 VDC Click here for price
OBP-06105 8 amp 125 VDC Click here for price
OBP-06106 9 amp 125 VDC Click here for price
OBP-06107 10 amp 125 VDC Click here for price
OBP-06108 15 amp 125 VDC Click here for price
OBP-06110 30 amp 125 VDC Click here for price
OBP-09110 Terminal Bus Bar, Black Insulators Click here for price
OBP-06200 Touch safe type fuse holder Click here for price
OBP-06201  Bussman Fuse 6 amp 600 VDC Click here for price
OBP-06202 Bussman Fuse 10 amp 600 VDC Click here for price
OBP-06203 Bussman Fuse 15 amp 600 VDC Click here for price
WIE-10050 WEEB Ground Lug 6.7 Stainless Steel Hardware ETL Listed Click here for price
OBP-09000 Ground Bus Bar Kit w/ mounting screws Click here for price
