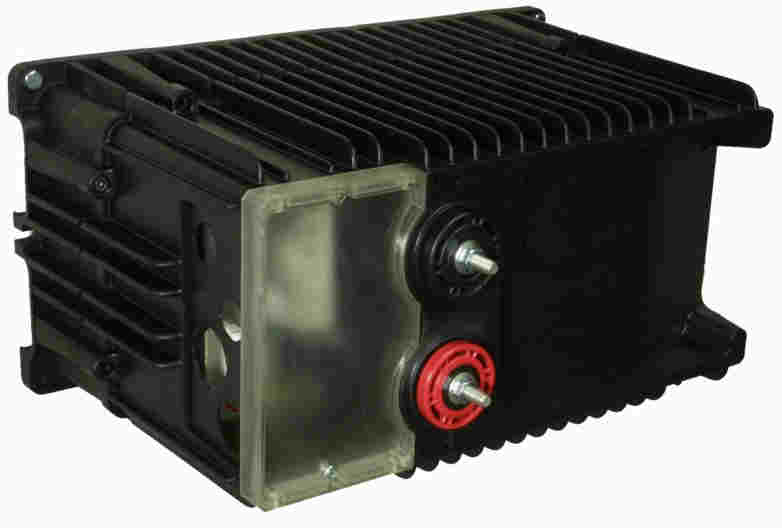

OUTBACK FX INVERTER - Sealed
The OutBack FX series inverter is a modular "building block” sine wave inverter/charger that can be used for both small and large power systems. Each OutBack FX inverter/charger is a complete power conversion system - DC to AC inverter, battery charger and AC transfer switch. Additional FX inverter/chargers can be connected at any time in parallel (120 VAC), series (120/240 VAC), or three-phase (120Y208 VAC) configurations. This allows a system to be tailored to meet the specific power conversion requirements of the application, both at the time of the installation and in the future. The OutBack FX series inverters are also available in export versions with 230 VAC, 50 Hz output that can be connected in parallel (230 VAC) or in three phase (230Y400 VAC) configurations. The OutBack FX inverter is designed to survive harsh environments anywhere in the world. Our unique sealed, gasketed die-cast aluminum chassis protects and keeps the power conversion components cool - without requiring outside air to be blown through the sensitive electronics. This reduces the major causes of inverter failure - corrosion, dust, insect and animal damage. The FX can be used in high ambient applications up to 60oC with reduced output ratings. The OutBack FX series inverter/charger system is designed for both residential and commercial stand-alone or backup power applications with battery energy storage. It is designed to operate as a coordinated system with the other OutBack products i.e. the FMDC, and the FMAC enclosures as well as the FM60 and 80 MPPT charge controllers and MATE system controllers and display.

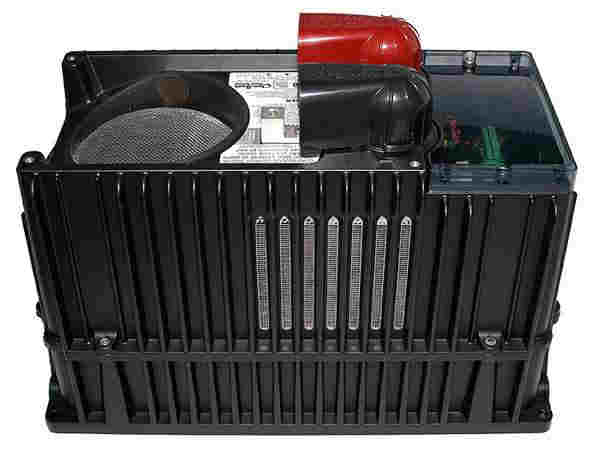

OUTBACK VFX INVERTER - Vented
The
new OutBack VFX series is a ventilated version of our original sealed FX series
modular "building block” sine wave inverter/charger that can be used for both
small and large power systems. By allowing cooler outside airflow through the
internal electronics, more AC power is available and operation in extremely hot
environments is improved compared to the sealed FX series. Each OutBack FX or
VFX inverter/charger is a complete power conversion system - DC to AC inverter,
battery charger and AC transfer switch. Additional FX inverter/chargers can be
connected at any time in parallel (120 VAC), series (120/240 VAC), or
three-phase (120Y208
VAC) configurations. This allows a system to be tailored to meet the specific
power conversion requirements of the application, both at the time of the
installation and in the future. The OutBack VFX series is also available in
export versions with 230 VAC, 50 Hz output that can be connected in parallel
(230 VAC) or in three phase (230Y400 VAC) configurations. Like the FX series,
the OutBack VFX is also designed to survive harsh environments around the world.
The full-screened vent openings are "bug-proof" and the die-cast aluminum
chassis protects and keeps the power conversion components cool in very hot
environments even when operated at high power for extended periods. The VFX can
be used in high ambient applications up to 60oC (with reduced output ratings).
The OutBack FX series inverter/charger system is designed for both residential
and commercial stand-alone or backup power applications with battery energy
storage. It is designed to operate as a coordinated system with the other
OutBack products i.e. the FMDC, and the FMAC
enclosures as well as the FM60 and 80 MPPT charge controllers and MATE system
controllers and display.
OUTBACK INVERTER PRICING
All of our OutBack inverters are brand new first line... we do not sell seconds, returns or repaired units. Our prices may look too good to be true, they're not... they're just the best prices on the Web.
And... we have a low price guarantee!!
Call 888-826-0939 for more info.
| Part Number | Inverter Description | PRICE |
|
|
SEALED INVERTERS
Recommended for use with AC generators or utility grid input |
|
| FX 2524T | Inverter/Charger 2500 watt 24VDC, 120VAC 60Hz | Click for Price |
| FX 2012T | Inverter/Charger 2000 watt 12VDC, 120VAC 60Hz | Click for Price |
| FX 2012ET | Inverter/Charger 1700 watt 12VDC, 230VAC 50Hz with Turbo | Click for Price |
| FX 3048T | Inverter/Charger 3000 watt 48VDC, 120VAC 60Hz | Click for Price |
| FX 2024ET | Inverter/Charger 2000 watt 24VDC, 230VAC 50Hz | Click for Price |
| FX 2348ET | Inverter/Charger 2300 watt 48VDC, 230VAC 50Hz | Click for Price |
|
|
VENTED INVERTERS
Recommended for use with AC generators or utility grid input |
|
| VFX 2812 | VFX Inverter/Charger 2800 watt 12VDC, 120VAC 60Hz Vented | Click for Price |
| VFX 3524 | VFX Inverter/Charger 3500 watt 24VDC, 120VAC 60Hz Vented | Click for Price |
| VFX 3648 | VFX Inverter/Charger 3600 watt 48VDC, 120VAC 60Hz Vented | Click for Price |
| VFX 2612E | VFX Inverter/Charger 2600 watt 12VDC, 230VAC 50Hz Vented | Click for Price |
| VFX 3048E | VFX Inverter/Charger 3000 watt 48VDC, 230VAC 50Hz Vented | Click for Price |
| VFX 3024E | VFX Inverter/Charger 3000 watt 24VDC, 230VAC 50Hz Vented | Click for Price |
|
|
GRID-INTERACTIVE INVERTERS
Not for use with AC generators |
|
| GTFX 2524 | Inverter/Charger 2500 watt 24VDC, 120VAC 60Hz Non-Vented | Click for Price |
| GTFX 3048 | Inverter/Charger 3000 watt 48VDC, 120VAC 60Hz Non-Vented | Click for Price |
| GVFX 3524 | Inverter/Charger 3500 watt 24VDC, 120VAC 60Hz Vented | Click for Price |
| GVFX 3648 | Inverter/Charger 3600 watt 48VDC, 120VAC 60Hz Vented | Click for Price |
|
|
Mobile, Marine, Ground
Switching, 30 amp Pass Through
Includes built-in AC neutral/ground switching system |
|
| FX 2012M | Inverter/Charger 1700 watt continuous 12VDC, 120VAC 60Hz Mobile | Click for Price |
| FX 2524M | Inverter/Charger 2500 watt 24VDC, 120VAC 60Hz Mobile | Click for Price |
| FX 2532M | Inverter/Charger 2500 watt 32VDC, 120VAC 60Hz Mobile w/Turbo | Click for Price |
| FX 2012MT | Inverter/Charger 1700 watt continuous 12VDC, 120VAC 60Hz Mobile | Click for Price |
| FX 2524MT | Inverter/Charger 2500 watt 24VDC, 120VAC 60Hz Mobile w/Turbo | Click for Price |
| FX 2532MT | Inverter/Charger 2500 watt 32VDC, 120VAC 60Hz Mobile w/Turbo | Click for Price |
| VFX 2812M | Inverter/Charger 2800 watt 12VDC, 120VAC 60Hz RV/Mobile Vented | Click for Price |
| VFX 3524M | Inverter/Charger 3500 watt 24VDC, 120VAC 60Hz Mobile 30 Amp Pass Through Vented | Click for Price |
| VFX 3232M | Inverter/Charger 3200 watt 32VDC, 120VAC 60Hz RV/Mobile Vented | Click for Price |
| Generator Start Control Equipment for use with OBP-MATE gen start option | ||
| ATE-50051 | The Solar Biz Generator Start Control Module for 3 wire start generators only | Click for Price |
| TSB-99077 | The
Solar Biz Generator Start Control Kit for 2 wire start generators only
connects to aux + & - on the inverter |
Click for Price |
|
Spare Inverter Boards
For our overseas customers |
||
| FX CNTRL | FX Control board, must specify inverter type when ordering | Click for Price |
| FX FET | FX FET board, must specify inverter type when ordering | Click for Price |
| FX AC | FX AC board, must specify inverter type when ordering | Click for Price |
| SET FX PCBA | Complete Set of all Three Boards, FET, Control and AC. Save $43.94 | Click for Price |
