Blue Sky MPPT Charge Controllers

Blue Sky Energy formerly RV Power Products was the first in the industry with MPPT technology. Their MPPT solar charge controllers use a patented Maximum Power Point Tracking feature that increases the solar array performance by as much as 30%, in other words a 5.0 peak sun hour day is stretched to 6.5! An excellent system upgrade for existing systems using older legacy charge controllers.

You not only get more power from the average high watt solar module, but it also boosts the entire system performance. Here's an example: A 1000W solar array now performances like a 1300Watt array. Do the math on your own system and see the incredible difference for yourself!

We Stock The Full Line of Blue Sky Products, call about products not listed.

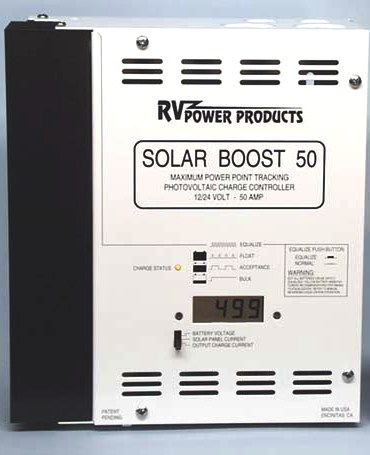

Configurable Multistage Charge Control Optimizes Charge Parameters to Battery Size, Type and Temperature. Accommodates External Battery Shunt Providing Optimal Charge Control and Enhanced Battery Performance. Available Temperature Compensation Further improves Charge Control and Battery Performance. 50 Amp 12/24 Volt Rating Supports Large PV Arrays. Electronic Current Limit Prevents Overload or Nuisance Fuse Blowing. Available Digital Display Monitors PV Charge Performance. UL Listed.

20 Amp Current Capability Supports Large PV Arrays. Adjustable Charge Voltage Charges Both Flooded and Gel Type 12 Volt Lead Acid Batteries.

MPPT technology allows Solar Boost 2112i and 2512iX to increase charge current up to 30% or more compared to conventional charge controllers. Don’t waste your money by throwing PV power away! Get the power you paid for with a Solar Boost charge controller. Both of these controllers are an excellent choice for your boat or motor home.

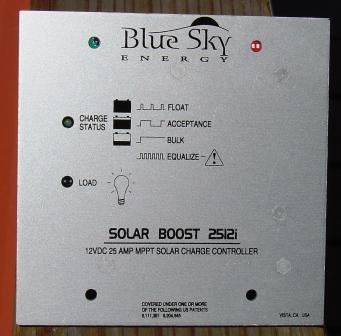

The low cost Solar Boost 2512i provides an advanced fully automatic 3-stage charge control system to ensure the battery is properly and fully charged, resulting in enhanced battery performance with less maintenance. A partial IPN™ network interface is also included to allow use of the IPN-Remote or IPN-Pro Remote displays.

The pictures at the right show the back of the 2512iX on the top Additional features provided in the Solar Boost 2512iX include automatic or manual equalization, battery temperature sensor input, full IPN network compatibility, and an auxiliary output. The user configurable auxiliary output can serve as either a 25 amp load controller, or as a 2 amp auxiliary battery charger. The load control feature can be used to limit excessive battery discharge in unattended remote systems, where as the auxiliary battery charge feature is ideal for charging a separate battery such as the engine battery in an RV.

Blue Sky Energy’s advanced Integrated Power Net™, or IPN Network, allows up to 8 IPN capable charge controllers to communicate with each other and operate as a single machine rather than separate charge controllers. The IPN network also allows networked controllers to share an optional battery temperature sensor and remote display. The IPN network does not require a display or other special hardware to operate.

Solar Boost 2512iX-HV Click for Price

Battery Temp Sensor for all Solar Boost controllers Click for Price

Multistage Charge Control Optimizes Charge Parameters to Battery Size and Type. Accommodates External Battery Shunt Providing Optimal Charge Control Available Temperature Compensation Further improves Battery Performance. 30 Amp 12/24 Volt Rating Supports Large PV Arrays. Electronic Current Limit Prevents Overload or Nuisance Fuse Blow. Available Digital Display Monitors PV Charge Performance. MPPT Power Conversion System can Charge 12 Volt Battery from 24 Volt Array. Durable Powder Coat Finish and Conformal Coated Electronics Resist Corrosion. UL Listed.
