SolarRoofs Hot Water Collectors
REAL PEOPLE - WWW.THESOLARBIZ.COM - 888-826-0939
SolarRoofs

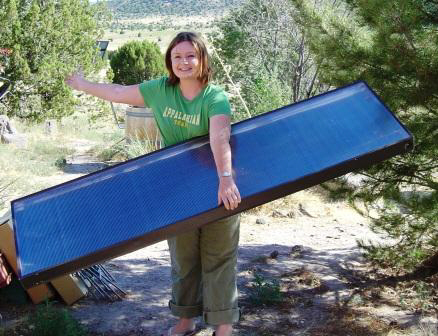

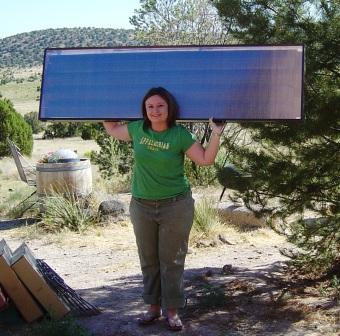

Light Weight Solar Water Heaters Feature high quality
ThermaFin "Black Crystal" copper absorber under Long Life "Macrolux" Unbreakable
Twinwall Polycarbonate Glazing as well as Patented "Disappearing Headers" for No
Damage, Low Cost Shipping. Attractive, Light Weight Collectors are Much
Safer and Easier to install! Factory Value Added Solar Water Heater with
Pre-soldered Components Make Your Installation Go Smoothly. We Do the Tedious
Soldering Work and You Save a Lot of Time!
The Florida State Energy Office Estimates that the Average All Electric Florida Home Uses 30% of it's Total Electric Energy Just to HEAT WATER!
In One Year, Most Families Water Heaters Use More Energy Than Their Family Car. Installing Your Solar Water Heater is Like Increasing Your Gas Mileage by 65% or more.
In One Year, Your Water Heater May Cost You More to Operate Than Your Heater or AC.
A Solar Water Heater Gives You "Tax Prepaid Income." Example: In the 35% Tax Bracket, Saving $520.00 On Your Hot Water Is the Same As Earning $800.00.
20 inches wide X 6 feet long
SRC-10010 Single 10-01 Collector(4) 1.5" L Brackets For Mounting And Hardware Check Price
Mounting rail kit: a 4 point connection kit used to lift the collector about 1 inch to allow water flow.
(4) - 1 inch square by 4 inch long with (4) four inch lag bolts for (1) collector Call for Information
Above is a custom 48 foot long SkyLine System
20 inches wide X 12 feet long - 2 collector Skyline kit
SRC-10020 Single 20-01 Collector, includes (6) 1.5" Mounting "L" Brackets Check Price
3 mounting rails: per collector Call for Information
Tilts panels approximately 18 degrees or as specified from existing roof angle.
Tilt kits are used when a better winter angle is desired on a low pitch roof or to "reorientate" panels to face south by running the panels up and down an East or West facing roof.
26" Single panel tilt kit:
Single Panel: 3 Modified 24" brackets with 6"** legs and hardware.
Call for Information
(*modified tilt angles available)
48" Double panel tilt kit:
Double panels: 3 - 48" Heavy
Aluminum channels with 12"** legs and hardware.
Call for Information
70" Triple panel tilt kit:
Triple panels: 3 - 70" Heavy
Aluminum channels with 12"** legs and hardware.
Call for Information
92" Four panel tilt kit:
Four panels:
Aluminum channels with 18"** legs and hardware.
Call for Information
Major System Components
The following is a price list of the major components
you'll need to complete your install.
Click here for other SOLAR ROOF COLLECTORS AND COMPONENTS not listed below
Please call 888-826-0939 to confirm current pricing as copper is fluctuating daily.
| QC01 | "Quick Connect" assembly with floating check valve, isolation valves, drain hose bibs, 1/2" copper stub on return and feed side: | Discontinued |
| QR01 | "Quad Rod" Special pre-assembly with 1 floating check valves, charging hose bib ports with isolation valve, pressure gauge, expansion tank: | Discontinued |
| HE80 | Full connections for the 80 gallon Rheem / Rudd heat exchanger, pre-assembly with 1 floating check valve, charging hose bib ports with isolation valve, pressure gauge, expansion tank: | Discontinued |
| SRC-70701 | TACO 006 110V AC Circulator Pump | Discontinued |
| IVN-13012 | El SID 10 Watt 12V DC Circulator Pump | Check Price |
| MAR-13017 | MARCH 18 Watt 12V DC Circulator Pump | Check Price |
| HRT-13009 | HARTELL MD-10-HEH DC brushless PV direct Circulator Pump | Check Price |
| SIS-60010 | SOLAR STAR 10 Watt 12V Solar Electric Module: | Check Price |
| SIS-60020 | SOLAR STAR 20 Watt 12V Solar Electric Module: | Check Price |
| GLO-50010 | Side-Of-Pole Rack for 10 Watt Module | Call for Information |
| GLO-50020 | Side-Of-Pole Rack for 20 Watt Module | Call for Information |
| VTC-55035 | 35F Freeze Valve (Starts to drip water at 35F) | Check Price |
| VTC-55045 | 45F Freeze Valve (Starts to drip water at 45F) | Check Price |
| DC01 | IE GL30 Differential Control with sensors and Recirculation option: | Call for Information |
| PR75 | 75 Pound Pressure Relief Valve: | Call for Information |
| CV01 | Floating Ball Check Valve: | Call for Information |
| MVWA | Watts Mixing Valve: | Discontinued |
| UT20 | 20 Gallon storage tank with thermosyphon connections for system 1, 2 and 3 (shipping @130 lb) | Discontinued |
| SRC50HE1 | SolarRoofs custom 50 Gallon heat exchanger tank (shipping @200 lb) | Discontinued |
| RHE-81000 | Rheem 80 Gallon Tank with Heat Exchanger Required for Sys 5 SRCC rating | Check Price |
Click here for more SOLAR ROOF COLLECTORS AND COMPONENTS
COMPLETE RESIDENTIAL SYSTEMS READY FOR INSTALLATION
Arranged specifically for your climate!
Tropical - Temperate Climate System #3 Qualifies for 30% Federal Tax Credit
SRCC OG300 Rated Open Loop 12 Volt Kit Includes:
Solar Thermal Collectors of your choosing (Standard Color Musket Brown), Rail Flush Mounting Kit, 12 volt El Cid or March circulation pump, 12V Solar PV Module with cable (size dependant on where you live), 50’ roll of ˝” OD soft copper, compression unions, lags, washers, tek screws, 6’ section of high temp insulation, “Quick Connect” Kit to existing or added water heater with shut off and drain valves, Floating Ball Check Valve (bottom connect is standard, Top Connect (TC02) is available at $30.00 extra charge), Solar Loop Pressure Relief Valve (PRV) with splash guard, air vent, Temperature Gauges, Mixing Valve, Special OG300 Labeling, Installation and Owners Manuals.
(2 10-01 collectors can be substituted for 1 20-01 collector
| Part # | Residential Application | # Collectors Needed | Hot Water Tank Needed | System Cost |
| SRC-30001 | 1 Person Cabins, Boats, or Motor-Homes | (1) 10-01 | >50 Gallons | Call for Information |
| SRC-30002 | 1-2 Person Households | (1) 20-01 | 50 Gallon | Call for Information |
| SRC-30003 | 3 Person Households | (3) 10-01 | 50 Gallon | Check Price |
| SRC-30004 | 2-4 Person Households | (2) 20-01 | 50 Gallon | Call for Information |
| SRC-30005 | 3-5 Person Households | (2) 20-01 | 80 Gallon | Call for Information |
| SRC-30006 | 5-8 Person Households | (3) 20-01 | 80 Gallon | Call for Information |
Hard Freeze System #5 - Complete, no solder required
System is great for cold areas up to – 54 degrees Fahrenheit or conditions with "Less Than Desirable" Water Qualifies for 30% Federal Tax Credit
SRCC OG300 Rated Closed Loop 12V System Kit Includes:
Solar Thermal Collectors of your choosing (Standard Color Musket Brown), Rail Flush Mounting Kit, 12 volt El Cid or March circulation pump, 12V Solar PV Module with cable (size dependant on where you live), 50’ roll of ˝” OD soft copper, compression unions, lags, washers, tek screws, 6’ section of high temp insulation, 25' Sensor Wire, “Quick Connect” Kit to existing or added water heater with shut off and drain valves, Floating Ball Check Valve on the return, expansion tank, hose bibs and isolation valves to charge the solar loop, Solar Loop Pressure Relief Valve (PRV) with splash guard, Temperature Gauges, Mixing Valve, Coin Vent, Special OG300 Labeling, Installation and Owners Manuals. Food grade “Sierra” or equal antifreeze not supplied. Can be obtained locally.
(2) 10-01 collectors can be substituted for (1) 20-01 collector
| Part # | Residential Application | # Collectors Needed | Heat Exchange Tank Needed | System Cost |
| SRC-50001 | 1-4 Person Households | (1) 10-01 | 80 Gallon | Call for Information |
| SRC-50002 | 4-6 Person Households | (1) 20-01 | 80 Gallon | Call for Information |
| SRC-50003 | 6+ Person Households | (3) 10-01 | 80-120 Gallon | Call for Information |
Rheem 80 Gallon Tank with Heat Exchanger Check Price
All systems are shipped out truck freight with crating please call us for a freight quote.
More Water System Options - Please call for variable pricing on options 888-826-0939
| Solar Collector Colors To Match Your Roof!! Some color choices may affect your orders lead time, The colors seen here do not reflect actual colors. |
Light Gray, Storm/Slate (dark) Gray, Black, Tahoe Blue, medium Blue, Sea Blue, Red, Peach (great on many light orange tile roofs), Bronze, Light Buckskin Brown, Medium Beaver Brown, Royal Brown, Forest Green, Spanish Green , Leaf Green, Marine Green, White, Ivory, Classic Cream, Wood Beige, Almond, Adobe Tan. |
| Taco 110V Pump System And Parts (Not For Use on systems with federal tax break) | 110 volt pump with line cord and a Differential Control with line cord and 2 sensors. No mixing valve needed. |
|
DELUXE Power Rod Heat Exchanger Kit -
Easily connect a closed loop to any standard (non self-cleaning) water heater! |
Kit includes: Power Rod External heat exchanger, water side 110 Volt pump, Quick Connect Kit that allows you to install the Power Rod in any standard tank drain valve, 2solar loop temperature gauges. |
