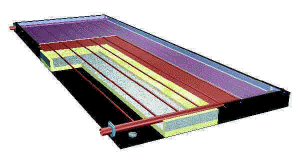

EMPIRE SERIES Liquid Flat Plate Collectors
The Empire series collectors are our most popular and versatile products. The Empire has the same rated performance as the more expensive models, comes in a wide variety of sizes and provides real value for both retrofit and new construction projects.
The Empire Series models we carry all have anodized frame walls and superior black chrome absorbers.
Collector Specifications
|
Model Number |
Width (in) |
Length (in) |
Depth (in) |
Gross Area (sq ft) |
Dry Weight (lbs) |
Fluid Capacity (US gal) |
Max Flow (GPM) |
Max Pressure (psig) |
Header Width (in) |
Header Center to Center (in) |
|
EC-21 |
36 1/8 |
78 1/4 |
3 1/4 |
19.70 |
60 |
0.60 |
12 |
160 |
39 3/4 |
73 1/2 |
|
EC-24 |
36 1/8 |
98 1/4 |
3 1/4 |
24.61 |
80 |
0.78 |
12 |
160 |
39 3/4 |
93 5/8 |
|
EC-32 |
48 1/8 |
98 1/4 |
3 1/4 |
32.79 |
106 |
1.00 |
12 |
160 |
51 3/8 |
93 5/8 |
|
EC-40 |
48 1/8 |
122 1/4 |
3 1/4 |
40.81 |
141 |
1.20 |
12 |
160 |
51 3/8 |
115 5/8 |
All Empire Series collectors have an anodized aluminum frame wall.
| Model Number | Description | PRICE |
| EC-21 | Black Chrome Absorber 3' X 6.5' | $679.97 |
| EC-24 | Black Chrome Absorber 3' X 8' | $709.97 |
| EC-32 | Black Chrome Absorber 4' X 8' | $869.97 |
| EC-40 | Black Chrome Absorber 4 X 10' | $1049.97 |
| Model Number | Description | PRICE |
| EP-21 | Painted Absorber Black 3' X 6.5' | $609.97 |
| EP-24 | Painted Absorber Black 3' X 8' | $639.97 |
| EP-32 | Painted Absorber Black 4' X 8' | $779.97 |
| EP-40 | Painted Absorber Black 4 X 10' | $929.97 |
Factory crating fee per complete truck freight shipment add $170.00 total. This includes a refundable palate charge of $40. Please check with us for quantity discounts.
Standoff Mounting
Standoff mounting is the simplest and most cost effective way to install SunEarth solar collectors on sloped roof surfaces. Standoff mounting components are designed to lift the collectors a minimum of 2" from the roof surface to facilitate drainage of rainwater under to units and prevent clogging from debris and leaf scatter. Standoff mounting of collectors is typically limited to asphalt shingled roofs and other flat roof surfaces that can provide a flush surface for attachment of mounting feet or flanges without additional flashing. For tile roofs and other uneven roof surfaces, collectors must be mounted using SolarStrut components.

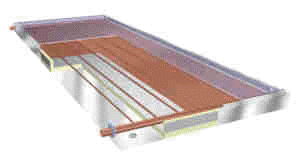

Empire and SunWise collectors are mounted on small foot sections of our SolarStrut that are placed near the four corners of the unit, directly over roof rafters. These foot sections are secured to the rafters using 3/8" stainless steel lag bolts. The collector is then clamped onto the foot sections using mounting clips that fit into the extruded mounting channel on the frame wall. Our SolarStrut stainless steel sliding nut assembly is then used to clamp the mounting clip firmly to the foot sections.
The feet, mounting clips, and strut nuts may all be purchased as a package # MTG-E-FK.
MTG-E-FK PRICE: $32.00
Solar Strut 1 5/8" X 4" (4) required per collector (Black Anodized or Clear Anodized) PRICE: $3.97 each.
