Battery Filling Systems

 REAL PEOPLE - WWW.THESOLARBIZ.COM - 888-826-0939


We have been in the battery business since 1969 - Forty-Seven years. Please give us a call toll free 888-826-0939 if you have questions or need any assistance whatsoever.


The biggest hassle for most folks is the periodic filling of their batteries. It's messy and sulfuric acid can be dangerous. I have known of folks who have gotten battery acid in their eyes. Almost everyone who has mucked about with batteries has ruined a pair of blue jeans, especially if they are new.

Alot of folks ask me why don't you sell Recombinant Technology caps and gizmos? Click this link for the answer. I know that they have been praised in the home solar magazines but we won't sell them to our customers. You are much better off checking and adding water with a Battery Filling System.

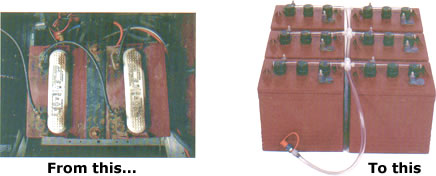

This filling system is the answer for the elimination of all these problems. It's not automatic... you must operate the system but, it fills all your cells in one simple operation.

We have a water deionizing system to produce battery grade deionized water from tap water for battery filling. Usually used when you have many batteries to fill or transportation of distilled water is not practical or cost effective.

Our second delivery solution is a simple 5 gallon bottle with all the necessary hardware and tubing to simply gravity feed distilled or deionized water to your battery. Once you've decided on the delivery system that's right for you,  then select the kit to fit your battery. You will need both the delivery system and the battery kit to complete the total system.

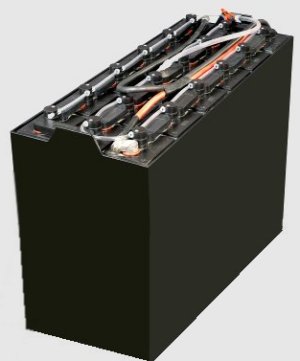

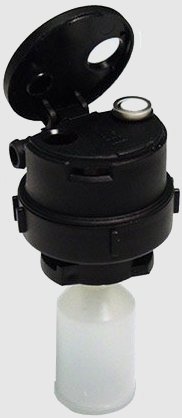

Our filling system kits are configured for most battery brands with standard bayonet vent openings. Systems for push-in and threaded cell openings are also available. The tubing is supplied un-cut so you can do an elegant custom installation. Our kits come complete with all the components needed for your battery.

The Solar Biz offers these high quality German engineered and manufactured products because they are the best in our industry. The filling system provides a quick, efficient method for adding water to flooded lead acid batteries. Years of research and development have shaped the technology of this system.

Our systems provide you with alot of important benefits:



No more harmful corrosion build-up on your batteries. Eliminates unsightly and potentially dangerous battery acid spills. Prevents exposure to dangerous battery acid and vapors. No more damaged and stained floors. Add years to the life of your batteries by ensuring each battery is refilled accurately and efficiently. Saves time: fills your batteries from a single connection, never remove another battery cap. Takes care of routine maintenance without having to remove caps. Improves battery maintenance by filling to the proper level and eliminating over and under filling. Reduces battery watering costs. Helps extend battery life by watering properly and reducing corrosion. Kits are easy to install on new batteries or retrofitted to existing batteries.

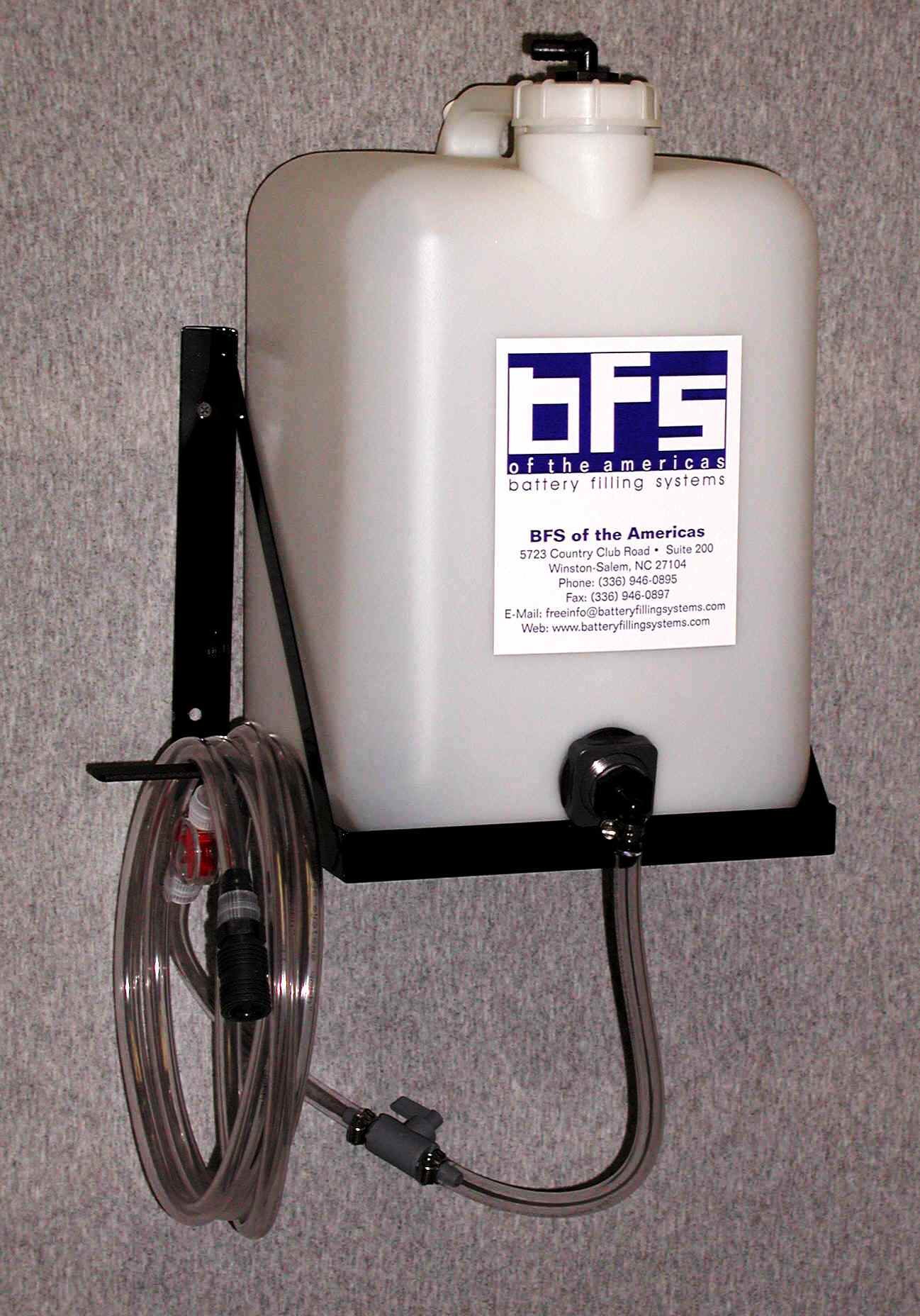

5 Gallon Gravity Feed Tank Kit



This is the simplest, most straightforward and cost effective filling system we sell. The Gravity Fill System comes complete with a 5 gallon container, to be filled with distilled or deionized water,  a connector, flow indicator, and shut off valve. Filler system at the left is shown with the optional steel shelf bracket, for easy mounting to a wall.

This is an ideal system for filling your HUP Solar One, Surrette of Golf cart batteries. This option is suitable in a residential or commercial renewable energy system, or for a few golf carts. If you have alot of batteries to fill  i.e. a golf course, consider our water deionizing system. Shown below




1800 gallons of purified water hassle free

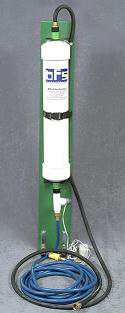

We have a direct fill water deionizing system to produce battery grade deionized water from tap water for battery filling. Our water deionizing system is just what you need when you have many batteries to fill or transportation of distilled water is not practical or cost effective.  You can fill your batteries directly when used with the optional system delivery gun BFS-98001, see below. Nothing else to install or buy.

This unit is made from the highest quality components, only the best resins are used in this system and each cylinder is 100% tested. Installation is easy, simply attach the back board to the wall with two bolts. Connect the input hose to your water supply. Connect the purity light into any 110 volt outlet and you're ready to go.

It has super capacity... the cartridge is rated for 1800 gallons of purified water. The output capacity will depend on the water quality in your facility. The system includes a purity light. The purity light tells you when the filter cartridge needs to be replaced. When the light flickers the cartridge is nearing the end of it's life. When the light goes out completely, the cartridge must be replaced. Replacement filters are available, priced below.




Item Number Description Price
BFS-00600 6 Cell Bayonet Kit for 12 Volts Click Here
BFS-01200 12 Cell Bayonet Kit for 24 Volts Click Here
BFS-01800 18 Cell Bayonet Kit for 36 Volts Click Here
BFS-02400 24 Cell Bayonet Kit for 48 Volt Click Here
BFS-98005 5 Gallon Gravity Feed Tank Kit Click Here
BFS-98010 Shelf for 5 Gallon Tank Kit Click Here
BFS-98001 System Delivery Gun, for use with deionizer Click Here
BFS-90100 Water Deionizer Filter Kit #DWKIT Click Here
BFS-90102 Deionizer Replacement Cartridge Click Here


Remember we have a low price guarantee

We sell the full line of Battery Filling System products at the same attractive prices. If you don't see what you want here call 888-826-0939 and we'll quote you on what you need.
